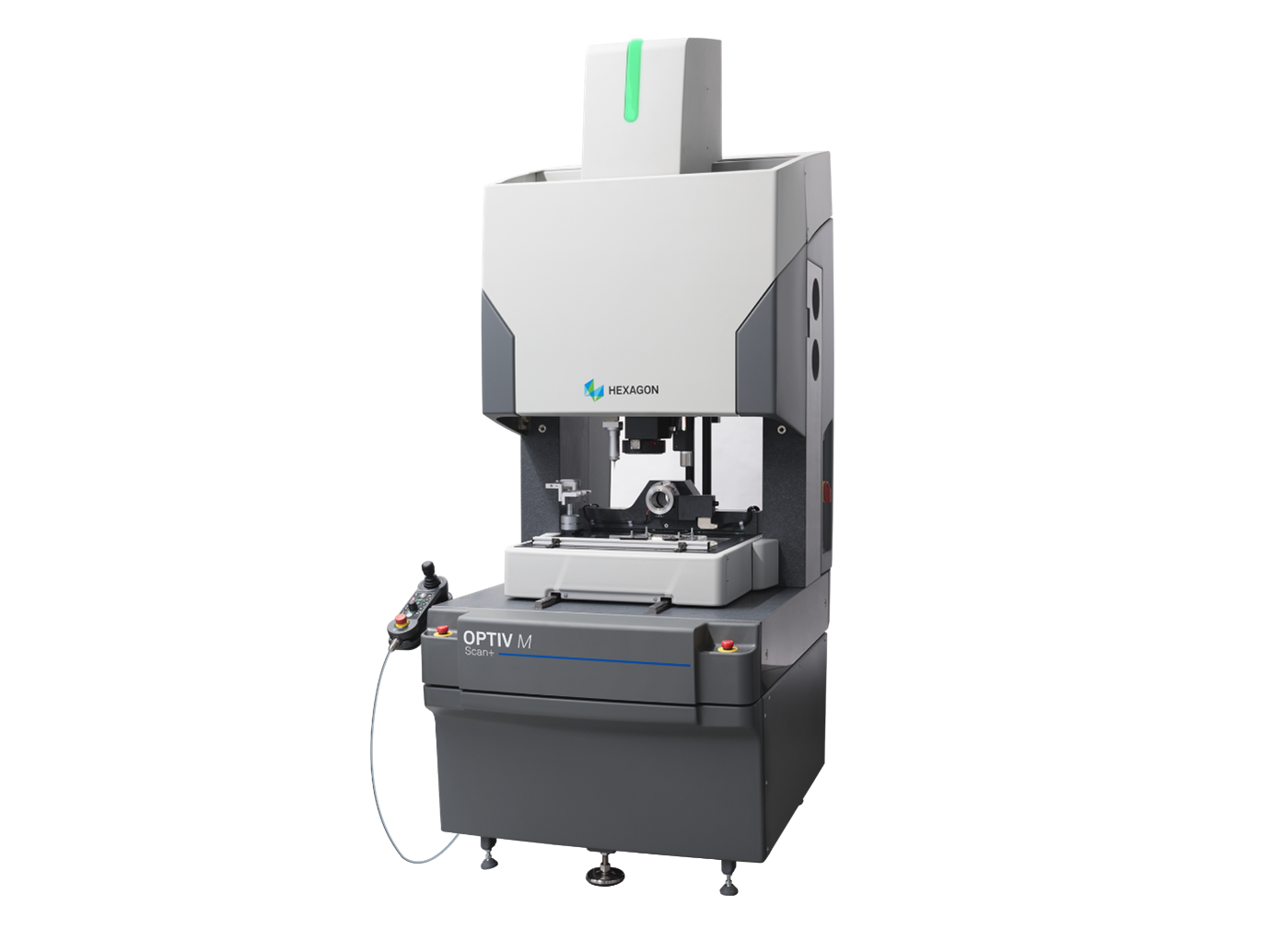

OPTIV M Scan+ provides an all-in-one solution for the multisensor measurement of geometric size and form features, additionally enabling functional fit inspection of precision parts of any material and surface finish.
- All-in-one metrology solution with additional scanning capabilities – camera sensor + scanning probe + optical white light sensor + CNC rotary table provide increased insight into critical functional features.
- Future-ready modularity allows for easy in-field upgrade of the base system.
- ISO 10360 compliant 3D measurement performance with high accuracy – optical and tactile.
- Effortless smart manufacturing integration of OPTIV M Scan+ due to standardised automation interface and seamless integration with Hexagon’s IoT technologies for remote asset and environment monitoring.
- Intuitive operability of OPTIV M Scan+ through a simplified operator interface.
- Future-proof investment fully backed up by Hexagon’s global service and support network.
Sizes available
OPTIV M 3.2.2 Scan+
OPTIV M 4.4.3 Scan+
OPTIV M 6.6.4 Scan+
OPTIV M Vision+ configuration
Scanning probe
Added ability to measure 3D form features and surface profiles with high speed and accuracy.
HP-S-X1C scanning probe kit with 5 x 20 mm standard stylus and 3-port styli changer rack.
Vision sensor
Fastest way to measure very small features and/or soft and sensitive parts.
Camera sensor with digital colour camera, motorised zoom lens, LED top/back/multi-segment ring light.
Rotary table
Added ability to measure parts in multiple views without re-clamping.
Mechanical bearing CNC rotary table for OPTIV M 4.4.3 Vision+ and OPTIV M 6.6.4 Vision+.
Optical white light sensor
Added ability for surface-independent non-contact measurement of extremely small 3D structures and fast scanning of surface profiles.
OPTIV CWS kit with 2 mm sensor head.
Measurement capabilities
Edge detection
Lateral contour scanning
Video autofocus
Single point probing
- Non-contact distance measurement
- Non-contact scanning
- Contact scanning
